Improve Directional Stability

Front and Rear

1

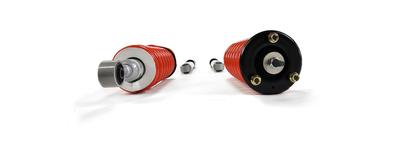

Bilstein 40mm Lift Kit

53-287328
Innovative lift kit from Bilstein which improves ground clearance by approximately 40mm and increases off-road capability without compromising on-road handling, poise and ride comfort.

Quantity required: 1

2

Full Suspension Enhancement Lift Kit

A

Formula Version

NAV-016R
Designed to deliver the ultimate in handling and control, both on and off road. Pre-2018 models should get around 40-50mm lift (depending on load and vehicle specification) and post-2018 vehicles will receive a 25-35mm lift. This is because the later vehicles were equipped with a longer shock and firmer springs than the older vehicles so have less sag at normal load levels.

Kit includes: Front Replacement Readystrut with SuperPro Top mounts, King taper wire coil springs, Formula Strut, Shortened Bump Stops, Rear King Taper Wire Coil Spring, Rear Formula dampers & SuperPro Offset Lower Control Arm Bushes.

  • Low-pressure Nitrogen for fade free performance
  • Designed and built for Australian conditions
  • SuperPro Hybrid bushings on both front struts
  • Specifically designed for each application
  • Valve coding to suit differing spring rates
  • Comfortable yet heavy-duty 4WD Lift Kit
  • Big-bore design for improved heat dissipation
  • Tapered pegs on front struts for increased strength
  • 3 Years/60000km Warranty


Please note: This kit's default rear spring rate, has been specifically designed for heavy-duty use on vehicles that have a constant load at 100kg. Matching spring rates with your vehicle's weight is critical to performance. If you are unsure of your vehicles rear load or the spring rate you require then please contact us to make sure you get the right spring rate.

Quantity required: 1

B

Bilstein Version

NAV-011R
Designed to deliver the ultimate in handling and control, both on and off road. Pre-2018 models should get around 40-50mm lift (depending on load and vehicle specification) and post-2018 vehicles will receive a 25-35mm lift. This is because the later vehicles were equipped with a longer shock and firmer springs than the older vehicles so have less sag at normal load levels.

Kit includes: Front Replacement Readystrut with SuperPro Top mounts, King taper wire coil springs, Bilstein Strut, Shortened Bump Stops, Rear King Taper Wire Coil Spring, Rear Bilstein dampers & SuperPro Offset Lower Control Arm Bushes.

  • BILSTEIN gas-pressure technology provides maximum traction, precise handling and safety
  • Patented digressive valving instantly reacts to changing surface conditions
  • Optimum grip and enhanced lane stability in day to day and extreme situations
  • Proven in harsh Australian outback conditions
  • Repairable & Revalveable
  • OEM certified mounting hardware allows for easy installation
  • Restores original ride characteristic
  • Individually fine-tuned during BILSTEIN road testing
  • Enhanced safety
  • Precision handling for optimised vehicle control
  • Constant damping power under any load
  • 3 year / 60,000km warranty


Please note: This kit's default rear spring rate, has been specifically designed for heavy-duty use on vehicles that have a constant load at 100kg. Matching spring rates with your vehicle's weight is critical to performance. If you are unsure of your vehicles rear load or the spring rate you require then please contact us to make sure you get the right spring rate.

Quantity required: 1

Front

3

Strut Top Spacer Kit

TRC008-6
Spacer Sleeve, suspension strut mount.

Raises vehicle approximately 10-12mm.

Quantity required: 1

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs 30mins
Fitting Time icon

Wheel-alignment required after fitment

4

Steering Rack & Pinion Mount Bush Kit

SPF4660K
Suits Thai Built models (VIN # M for Thailand Models)

Quantity required: 1

Kit Includes: 5 x Polyurethane Bushes, 2 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 2hrs 30mins
Fitting Time icon

Wheel-alignment required after fitment

5

ReadyStrut Top Caps

RS001K
Strut Cap, Spring Seat, Nuts & Washers

Quantity required: 1

6

Upper Control Arm Kit for Lifted Vehicles

A

Fixed Offset

TRC6540
Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber (depending on height of lift)

Quantity required: 1

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs
Fitting Time icon

Wheel-alignment required after fitment

B

Adjustable Offset

TRC540
Alignment Correction. Supplied with Camber & Caster Adjustable Ball Joints. Fitted with SuperPro Bushings.

These arms deliver up to 3 degree of caster along with extra camber, allowing for the optimum alignment settings for a 2-inch lifted vehicle. However, it is important to note that a 2-inch block lift does not necessarily translate to a ride height change of 2 inches (in fact, it's likely to be more due to the way it works). The only way to be sure how much your vehicle has been lifted is for the correct measurements to be taken before and after fitting the lift which should be done as a matter of course when doing any suspension work. If you do not know the before and after measurements, you may need the two bushes mentioned below to correct alignment.

Anything in excess of 2-inches of lift we would recommend fitting double-offset bushes (SPF4784XK) and (SPF4786XK) to achieve optimal alignment settings.

Not only do these arms provide for better wheel alignment settings, they have been designed to include increased clearance between the arm and strut at full droop.

Key Features
  • Increased articulation, perfect for the off road environment
  • In-built camber and caster change to suit lifted vehicle
  • Provides for camber and caster adjustment using an adjustable ball joint
  • Increased clearance between spring and Control Arm at full articulation
  • SuperPro Bushings
  • Made in Australia

Quantity required: 1

Kit Includes: 2 x Arms, 2 x Ball Joints, 4 x Polyurethane Bushes, 4 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs
Fitting Time icon

Wheel-alignment required after fitment

7

Control Arm Lower-Inner Bush Kit

A

Standard Alignment Kit

SPF4785K
Standard replacement

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon

Wheel-alignment required after fitment

B

Double-Offset Alignment Kit

SPF4786K
4 x offset bushings & 4 x Standard tubes

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon

Wheel-alignment required after fitment

C

Extra Double-Offset Alignment Kit

SPF4786XK
4 x offset bushings & 4 x offset tubes, for use where max adjustment is needed

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon

Wheel-alignment required after fitment

8

Control Arm Upper-Inner Bush Kit

A

Standard Alignment Kit

SPF4784K
Standard replacement

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon

Wheel-alignment required after fitment

B

Camber-Adjustable Kit

SPF4784XK
Offset tubes to aid in camber adjustment in raised vehicles

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon

Wheel-alignment required after fitment

9

Left-Hand Anti-Roll Bar Link

TRC4030L
Standard replacement

Quantity required: 1

Kit Includes: 1 x Link

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 30mins
Fitting Time icon

10

Right-Hand Anti-Roll Bar Link

TRC4030R
Standard replacement

Quantity required: 1

Kit Includes: 1 x Link

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 30mins
Fitting Time icon

11

Anti-Roll Bar Link Kit - Heavy Duty Adjustable

TRC1225
Ideal for lifted vehicles. 25mm long Thread. 12mm Ball Joint Adjustable Link. Min length 75mm, max length 85mm

Quantity required: 1

Kit Includes: 2 x Links

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr
Fitting Time icon

Rear

12

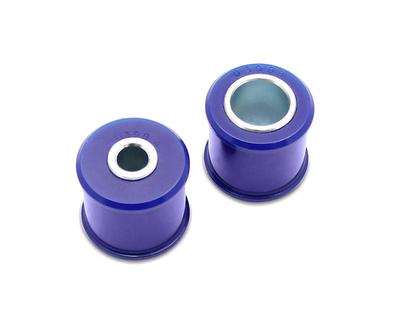

Panhard Rod Bush Kit

SPF0398K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes, 2 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr
Fitting Time icon

13

Trailing Arm Lower-Front Bush Kit

SPF0399K

Quantity required: 1

Kit Includes: 2 x Steel Tubes, 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

14

Trailing Arm Lower-Rear Bush Kit

SPF0399K

Quantity required: 1

Kit Includes: 2 x Steel Tubes, 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

15

Trailing Arm Upper-Front Bush Kit

SPF0399K

Quantity required: 1

Kit Includes: 2 x Steel Tubes, 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

16

Trailing Arm Upper-Rear Bush Kit

SPF0399K

Quantity required: 1

Kit Includes: 2 x Steel Tubes, 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

17

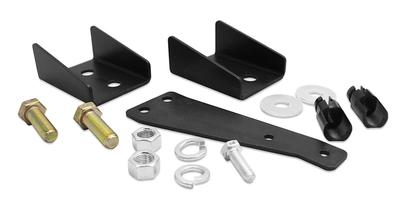

Bracket Extension Kit

SPF5290K
Suits Lifted Vehicles. Extension brackets for headlight sensor, anti-roll bar links and brake lines.

Quantity required: 1

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 30mins
Fitting Time icon

18

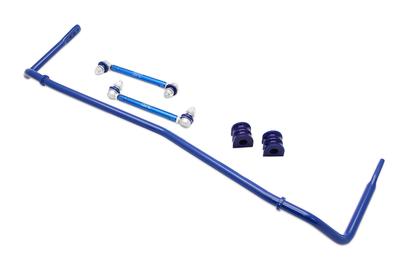

22mm Heavy Duty 3 Position Blade Adjustable Anti-Roll Bar

RC0080RZ-22
Anti-Roll Bar Kit includes Adjustable Anti-Roll Bar Links and D-Bushes

Quantity required: 1

Kit Includes: 1 x Anti-Roll Bar, 2 x Polyurethane Bushes, 2 x Links

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

19

Anti-Roll Bar Link Kit

A

Cut-To-Length

TRC4007

Quantity required: 2

Kit Includes: 1 x Link

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 30mins
Fitting Time icon

B

Heavy-Duty-Adjustable

TRC12200
12mm Ball Joint Adjustable Link

Quantity required: 1

Kit Includes: 2 x Links

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr
Fitting Time icon

C

Quick-Release Anti-Roll Bar Links - Heavy Duty Extended

TRC4304
SuperPro's heavy-duty extended thread Anti-Roll Bar links are designed and manufactured to suit lifted Vehicles from 2-8 inches.

They are designed to allow you to effectively trim the anti-roll bar links to your desired length to provide adequate tail shaft clearance and anti-roll bar alignment.

Manufactured from a heavy-duty 16mm rod our anti-roll bar links offer increased strength and stud articulation, providing for less stress on the anti-roll bar links during wheel articulation.

Quantity required: 2

Kit Includes: 1 x Link

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 30mins
Fitting Time icon
