Improve Directional Stability

Front and Rear

1

Front Control Arm, Rear Trailing Arm & Panhard Rod Bush Kit

KIT5298K
No Photo Available
Kit Includes: 1xSPF3279K, 1xSPF3278K, 1xSPF3277K, 1xSPF3292K, 1xSPF3286K, 1xSPF3285K

Quantity required: 1

Front

2

Strut Top Spacer Kit

TRC008-6
Spacer Sleeve, suspension strut mount.

Raises vehicle approximately 10-12mm.

Quantity required: 1

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs 30mins
Fitting Time icon

Wheel-alignment required after fitment

3

Front Control Arm Bush Kit

KIT5298FK
No Photo Available
Kit Includes: 1xSPF3279K, 1xSPF3278K, 1xSPF3277K

Quantity required: 1

4

Control Arm Lower - Inner Front Bush

SPF3279K
Replaces OE# 48654-60040

OEM Part Number: 48654-60040

Quantity required: 1

Kit Includes: 2 x Sleeves, 2 x Steel Tubes, 2 x Polyurethane Bushes

5

Control Arm Lower - Inner Rear Bush

SPF3278K
Replaces OE# 48655-60040

OEM Part Number: 48655-60040

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes, 2 x Steel Tubes, 2 x Sleeves

6

Control Arm Upper - Inner Bush Kit

A

Standard Alignment

SPF3277K
Remove OE Shell - replaces OE# 48632-60030. For camber increase use SPF3277XK

OEM Part Number: 48632-60030

Quantity required: 1

Kit Includes: 4 x Steel Tubes, 12 x Washer(s) - used for Steel and / or Polyurethane, 8 x Polyurethane Bushes

B

Camber-Adjustable

SPF3277XK
Adjustable up to + /- 0.5-0.75 Degrees Camber Adjustment. For standard alignment use SPF3277K

Quantity required: 1

Kit Includes: 8 x Polyurethane Bushes, 4 x Steel Tubes, 12 x Washer(s) - used for Steel and / or Polyurethane

7

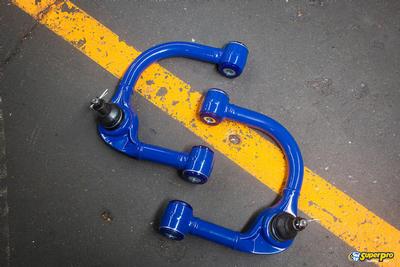

Control Arm Upper Complete Assembly - Adjustable

TRC485
Left and Right Arms for Lifted Vehicles with Caster and Camber Correction
Adjustable up to 4 Degrees increase in Caster and + or - 2 Degrees Camber Adjustment
Arms fitted with Uprated Ball Joints and SuperPro Bushes to reduce Arm movement
Getting the correct alignment is no longer a problem.
Not only do these arms provide for better wheel alignment settings, they have been designed to include increased clearance between the arm and strut at full droop.
These arms deliver up to 3 degree of caster along with extra camber, allowing for the optimum alignment settings for a 2" lifted vehicle.

Key Features
  • Increased articulation, perfect for the off road environment
  • Provides for camber and caster adjustment using an adjustable ball joint
  • Increased clearance between spring and Control Arm at full articulation
  • SuperPro Bushings
  • Made in Australia

Quantity required: 1

Kit Includes: 2 x Arms

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs
Fitting Time icon

8

ReadyStrut Top Caps

RS003K
Strut Cap, Spring Seat, Nuts & Washers - Pair

Quantity required: 1

9

Coil Spring Spacer

A

Raises Vehicle Approximately 10mm

SPF3281-10K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

B

Raises Vehicle Approximately 20mm

SPF3281-20K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

10

Shock Absorber - Upper Bush

SPF3743K

Quantity required: 1

Kit Includes: 4 x Washer(s) - used for Steel and / or Polyurethane, 4 x Polyurethane Bushes

11

Differential Drop Kit

TRCLC200DD
Suits Lifted vehicles.

It is supplied complete with all required spacers, bolts, washers and nuts.
When lifting the 2007 to current 200 Series Land Cruiser, the Constant Velocity (CV) joints are put on an increased angle, helping to accelerate the wear on the joint and putting additional stress on the CV boots that will lead to splitting and premature failure of the CV.
The SuperPro bolt on kit corrects the geometry of the front axles and CV's by lowering the front diff approximately 25mm.
Reducing the angles the CV joints are operating at will help avoid the expensive replacement costs of CV's and boots.
This wear is accelerated further if larger & wider wheels and tyres are fitted.

Quantity required: 1

Kit Includes: 10 x Spacers, 10 x Bolts, 14 x Washer(s) - used for Steel and / or Polyurethane, 2 x Nuts

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 2hrs
Fitting Time icon

12

Steering Rack & Pinion Mount Bush

SPF3770K

Quantity required: 1

Kit Includes: 6 x Polyurethane Bushes, 3 x Steel Tubes, 6 x Washer(s) - used for Steel and / or Polyurethane

13

Anti-Roll Bar Mount To Chassis Bush

A

Non-KDSS Vehicles

SPF3448-35K
Non KDSS Vehicles, Suits OE Bracket #48824-60170. 32, 35,37.5,39 & 40mm available

OEM Part Number: 48824-60170

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

B

KDSS Vehicles

SPF3280-43K
KDSS Vehicles

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

14

Anti-Roll Bar Link Lower Bushing

SPF2147K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 2 x Steel Tubes

15

39mm Extra Heavy Duty Anti-Roll Bar

RC0029F-39

Quantity required: 1

Kit Includes: 1 x Anti-Roll Bar, 2 x Polyurethane Bushes

Rear

16

Trailing Arm & Panhard Rod Bush Kit

KIT5298RK
No Photo Available
Kit Includes: 1xSPF3292K, 1xSPF3286K, 1xSPF3285K

Quantity required: 1

17

Panhard Rod Bush

SPF3292K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes, 2 x Steel Tubes

18

Coil Spring Spacer

A

Raises Vehicle Approximately 10mm

SPF3287-10K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

B

Raises Vehicle Approximately 15mm

SPF3287-15K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

19

Trailing Arm - Lower - Bush All

SPF3286K

Quantity required: 1

Kit Includes: 4 x Steel Tubes, 4 x Polyurethane Bushes

20

Trailing Arm - Upper - Bush All

SPF3285K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes

21

Anti-Roll Bar Link Kit - Heavy Duty

TRC0041
Suits raised vehicles. Extra length links to return Anti-Roll Bar to original position on a lifted vehicle

Quantity required: 1

Kit Includes: 2 x Links, 8 x Polyurethane Bushes, 2 x Steel Tubes, 4 x Washer(s) - used for Steel and / or Polyurethane

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 30mins
Fitting Time icon

22

Extended Anti-Roll Bar Link

TRC4308
TRC4308 has been designed and manufactured in a one-piece forged design with OE specification bushes and ball stud to replicate the factory component in function and appearance.

Suited to KDSS fitted 200 Series Land Cruisers with 50+mm of suspension lift.

The link allows considerably more suspension travel with supporting modifications such as longer shocks and control arms etc and assists with rectification of the “KDSS Lean” as commonly found in the 200 series.

TRC4308 includes a 50mm extension at the sway bar mount pivot, compared to the OE arm, allowing increased suspension travel for 200 Series with KDSS when modified to run long travel shocks (length to be checked & confirmed prior to fitment).

TRC4308 is a direct replacement for the LH rear link – if a RH link is required, use TRC0041.

Quantity required: 1

Kit Includes: 1 x Link

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 30mins
Fitting Time icon

23

Anti-Roll Bar Link Lower Bush Kit

SPF2147K
Non KDSS Vehicles

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 2 x Steel Tubes

24

Anti-Roll Bar Link Upper Bush Kit

A

Standard Use

SPF4805-80K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

B

Heavy-Duty Use

SPF4805-90K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

25

Anti-Roll Bar Mount To Chassis Bush

SPF3449-30K
Non KDSS Vehicles, Suits OE Bracket #48824-26230. 30, 33 & 34mm available

OEM Part Number: 48824-26230

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

26

33mm Extra Heavy Duty Anti-Roll Bar

RC0029R-33

Quantity required: 1

Kit Includes: 1 x Anti-Roll Bar, 2 x Polyurethane Bushes
