My steering is soo much sharper!

Front and Rear

1

Easy-Lift Kit

TRC169LK
This kit will lift the vehicle approx. 45mm and retains the standard suspension. Kit contains 2 Front Strut Spacers, 2 Rear Raising Blocks, 4 U Bolts. To be used with standard height suspension only

Quantity required: 1

Kit Includes: 2 x Spacers, 2 x Spacer Blocks, 4 x U-Bolts

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 2hrs 30mins
Fitting Time icon

Wheel-alignment required after fitment

Front

2

Adjustable Complete Control Arm Assembly

TRC560
Alignment Correction. Camber & Caster Adjustable Ball Joints & SuperPro Bushings.

+/- 2 Degrees of Camber Adjustment and 0 to +4 Degrees of Caster Adjustment.

Getting the correct alignment is no longer a problem and the design of these Arms overcome clearance issues.

These arms deliver up to 3 degree of caster along with extra camber, allowing for the optimum alignment settings for a 2" lifted vehicle.

Not only do these arms provide for better wheel alignment settings, they have been designed to include increased clearance between the arm and strut at full articulation - perfect for off-road situations.

Previously made from steel tube welded to a forged steel ball joint plate, the new arms utilise the manufacturing method developed and refined with the Ford and Toyota arms.

They are built tough in Australia using high strength, OE grade Aussie steel.
These arms deliver up to 3 degree of caster along with extra camber, allowing for the optimum alignment settings for a 2" lifted vehicle.

Not only do these arms provide for better wheel alignment settings, they have been designed to include increased clearance between the arm and strut at full droop.

Previously made from steel tube welded to a forged steel ball joint plate, the new arms utilise the manufacturing method developed and refined with the Ford and Toyota arms.

They are built tough in Australia using high strength, OE grade Aussie steel.

Quantity required: 1

Kit Includes: 2 x Arms, 2 x Ball Joints

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 2hrs
Fitting Time icon

Wheel-alignment required after fitment

3

34mm Heavy Duty 2-Position Blade-Adjustable Sway Bar

RC0009FZ-34

Quantity required: 1

Kit Includes: 1 x Sway Bar, 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 2hrs
Fitting Time icon

Wheel-alignment required after fitment

4

Sway Bar Link Kit

TRC12160
12mm Ball Joint adjustable link. Minimum length 210mm to maximum length 260mm. Made with 6060-T5 Alloy Ball for low friction and long life. Spanner provision for on-car adjustment. Eliminates sway bar link flex. Allows for neutral sway bar positioning. Maximises all positions on adjustable Sway Bars. Suits lowered or raised vehicles

Quantity required: 1

Kit Includes: 2 x Links

Fitment Difficulty:
Fitting Difficulty 2 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr
Fitting Time icon

Wheel-alignment required after fitment

5

Sway Bar to Chassis Mount

SPF3800-30K
30mm standard. 32 & 34mm also available so please measure your bar diameter

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr
Fitting Time icon

6

Control Arm Upper-Inner Bush Kit

A

Standard Alignment Kit

SPF3796K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes, 4 x Washer(s) - used for Steel and / or Polyurethane

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs
Fitting Time icon

Wheel-alignment required after fitment

B

Camber-Adjustable Kit

SPF3892K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes, 4 x Washer(s) - used for Steel and / or Polyurethane

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs
Fitting Time icon

Wheel-alignment required after fitment

7

Control Arm Lower Inner Front Bush

SPF3695K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 4 x Steel Tubes, 8 x Washer(s) - used for Steel and / or Polyurethane

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs
Fitting Time icon

Wheel-alignment required after fitment

8

Front Upper Spring Seat Bush Kit

SPF4093K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 2hrs 30mins
Fitting Time icon

Wheel-alignment required after fitment

9

ReadyStrut Top Caps

A

Standard (OEM) Struts

RS011K
OEM Strut Cap, Spring Seat, Nuts & Washers - Pair

Quantity required: 1

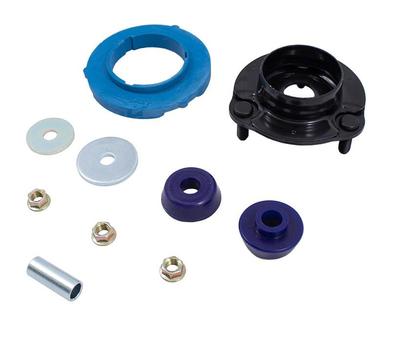

B

Bilstein and Raw Struts

RS006K
Bilstein Strut Cap, Spring Seat, Nuts & Washers - Pair

Quantity required: 1

10

Shock Absorber Lower Bush

SPF3805K

Quantity required: 1

Kit Includes: 2 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

11

Shock Absorber Upper Bush

SPF4733K
Standard Replacement, Suits O.E struts

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 2 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Rear

12

Centre Bearing Alignment Kit

SPF4659K
Re-Aligns Tail Shaft on lifted vehicles to remove vibration

Quantity required: 1

Kit Includes: 2 x Nuts, 6 x Washer(s) - used for Steel and / or Polyurethane

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr
Fitting Time icon

Wheel-alignment required after fitment

13

Spring Rear Bush Kit - All

KIT0168K
Kit Includes 1xSPF3802K, 1xSPF3804K, 1xSPF3803K

These bushings are often overlooked when upgrading the suspension of a 4WD.

Leaf spring bushings stabilise the movement of the rear axle, inferior bushes in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle.

It also causes the vehicle to "wander" all over the road and be unstable under heavy braking.

This can be especially noticeable carrying a load or towing a boat or caravan.

The OE rubber style bushes are designed to work at standard height with standard tyres and with standard loads.

By fitting SuperPro Bushings and upgrading to Greaseable Shackles the rear end of your 4WD will handle just about anything you can throw at it and are easily serviceable!

Quantity required: 1

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon

14

Spring Front Eye Bush

SPF3802K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes, 2 x Steel Tubes

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 3hrs
Fitting Time icon

15

Spring Rear Eye Bush

SPF3804K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

16

Spring Shackle Upper Bush

SPF3803K

Quantity required: 1

Kit Includes: 4 x Polyurethane Bushes

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr 30mins
Fitting Time icon

17

Greasable Shackle and Bush Kit

KIT0168SK
Contains Greasable Shackles and Fixed Pins with all SuperPro Bushings.

These bushings are often overlooked when upgrading the suspension of a 4WD. Leaf spring bushings stabilise the movement of the rear axle, inferior bushes in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle. It also causes the vehicle to 'wander' all over the road and be unstable under heavy braking. This can be especially noticeable carrying a load or towing a boat or caravan. The OE rubber style bushes are designed to work at standard height with standard tyres and with standard loads. By fitting SuperPro Bushings and upgrading to Greaseable Shackles the rear end of your 4WD will handle just about anything you can throw at it!

Quantity required: 1

Fitment Difficulty:
Fitting Difficulty 1 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 1hr
Fitting Time icon

18

Heavy Duty 3-Position Blade-Adjustable Sway Bar

A

20mm Bar

RC0009RZ-20
Please note - this kit is not suitable for vehicles fitted with the AdBlue system.

Quantity required: 1

Kit Includes: 1 x Sway Bar, 1 x Fitting Kit

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon

B

22mm Bar

RC0009RZ-22
Please note - this kit is not suitable for vehicles fitted with the AdBlue system.

Quantity required: 1

Kit Includes: 1 x SBKIT

Fitment Difficulty:
Fitting Difficulty 3 out of 5. 1 being easiest, 5 being hardest.

Fitting Time: 4hrs
Fitting Time icon
