WTK001

Universal Press Tool Kit

Ideal for bearings, bushes, spherical joints or other applications. It can be used on a workshop press or, better yet, on a car simply and easily. Less force is required to remove/install bushings, bearings and joints, making use easy even without power tools.

Most old and new suspension bushings are pressed in and out with old bearing shells, sockets, or anything you can find. This creates a safety issue because heat-treated steel will shatter under stress. The assortment of sleeves that make up the Press Tool Kit is made from mild steel to allow distortion or crush when over-pressed. These newly designed tools provide an easy way to install and remove bushings and aid in other workshop-pressing requirements.

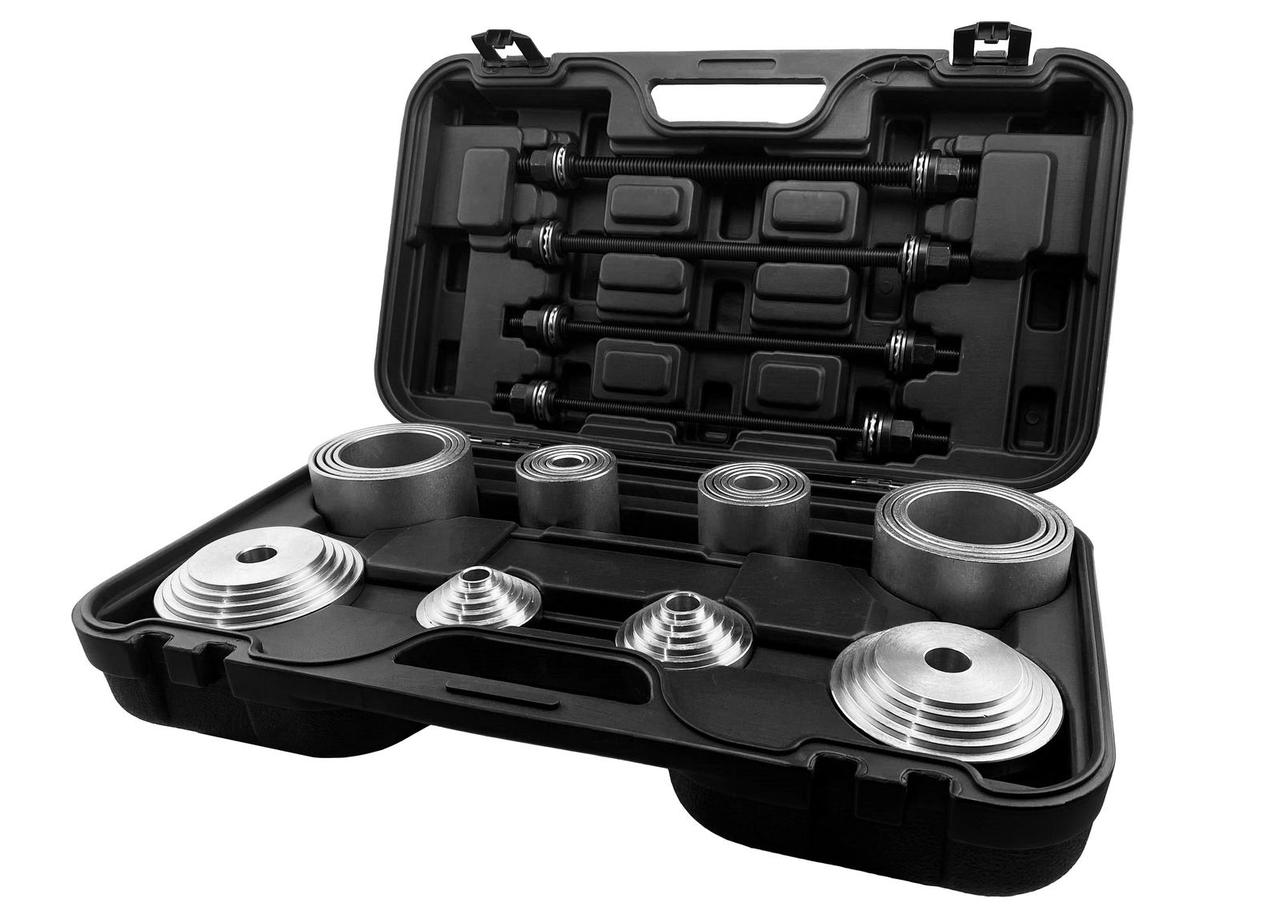

Kit Contains:

• 18 x sleeves - 28mm-113mm diameter (5mm increments)
• 4 press plates
• 4 pulling spindles covering following bolt sizes (M10,M12,M14,M16)
  • Rolled thread on spindles
  • Nuts with double washers and encapsulated lubricated ball bearings for strength and longevity (stops nut from binding and stripping thread)
